Importance of Building Orientation In Architecture

We design for comfort. Can you believe that proper building orientation in architecture can amplify such comfort? You develop the building’s massing and structure by implementing these orientations. As a result, increasing the energy efficiency of the spaces.

But did you know that smart orientation can also help with thermal and visual comfort?

Let’s not forget the added financial benefits of reducing your electric bills!

Building orientation
Image source: theengineeringdesign.com

Users enjoy a cost-effective design that increases comfortability and reduces electric usage. As for the developers and the builders, such positioning increases the property’s value and marketability.

Doesn’t it seem like a win-win situation? What do you say?

Well, dive in as we discuss it in detail!

Goals for Building Orientation

Positioning built spaces to optimize its surroundings increases its efficiency. Orientation defines the building’s direction depending on factors like sunlight, wind, and rainfall. It is an analytical process that defines the massing and structure of the building.

The main goals of building orientation are as follows,

  • Provide the optimal position depending on its surroundings
  • Increase the natural light and ventilation for the dwellers
  • Protection against external dust and noise
  • Protection against climatic changes like rainfall and hurricanes
  • Provide privacy for the users
  • Increase aesthetic value

Factors affecting Building Orientation

Thermal Radiation and Direction

Sunlight is the ultimate source of energy. When used correctly, you can optimize these solar radiations and temperatures to increase the design’s efficiency. However, the intensity of the sunlight depends on its angle of incidence. These decide the building’s orientation.

In general, there are two ways thermal radiation can enter any built space.

  • Direct radiation enters through openings like doors and windows
  • Indirect radiation enters by conduction through the walls and other structural components

The intensity and duration of these radiations vary based on geographical location.

Humidity

Now depending on the sunlight and geographical location, regions vary in humidity. Ranging from dry – humid, the humidity in the air levels plays a minor role in building orientation. As for humid countries, apertures favoring air flow during the high humid seasons are vital. These considerations protect it from molds and fungal growth.

Wind Direction

Another important factor for building orientation in architecture is the wind direction. You must study the annual wind pattern at your site. Prioritize the direction and velocity of the wind flow. Using these data, you can design an optimal design mass that can encourage better air flow and natural ventilation within the interiors.

Rainfall

We can orient the building and its apertures depending on the precipitation intensity and angles. For the basics, the rainfall direction is similar to that of the wind flow. During cyclones and hurricanes, the rainfall can be extreme and forceful. Combating it with ideal glazing and sunshades can protect the interior spaces.

Neighborhood Conditions

Unlike the above-discussed natural factors, the orientation due to neighborhood conditions is relatively different. Depending on the traffic, dust, smoke, noise, and vista, we develop the building’s massing. These factors also decide the glazing and visual hierarchy in a structure.

Orientation for Thermal Needs

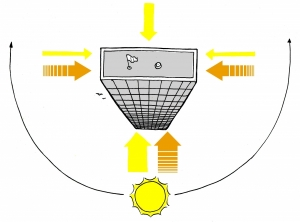

Building orientation
Building orientation to optimize heat gain. Image source: knowledge.autodesk.com

Sun being the strongest form of heat source, it’s crucial to acknowledge it while massing and orientation. Both sunlight and heat behave the same way. However, the thermal heat gain is relevant only to certain sides of the building, while some sides don’t have any radiation on them. Whereas with sunlight, the incident of these rays is dispersed. Even the sides lacking thermal heat gain receive sunlight as diffused light.

The built spaces gain thermal energy through direct and indirect heating. But retaining the heat allows it to regulate the internal temperature at night. Thus optimizing these sides is vital in the colder region to increase the heat gain while minimizing the surface exposure in hot climates can avoid further heat gain. Even small footprints with vertical massing can optimize the solar rays.

Orientation for Visual Needs

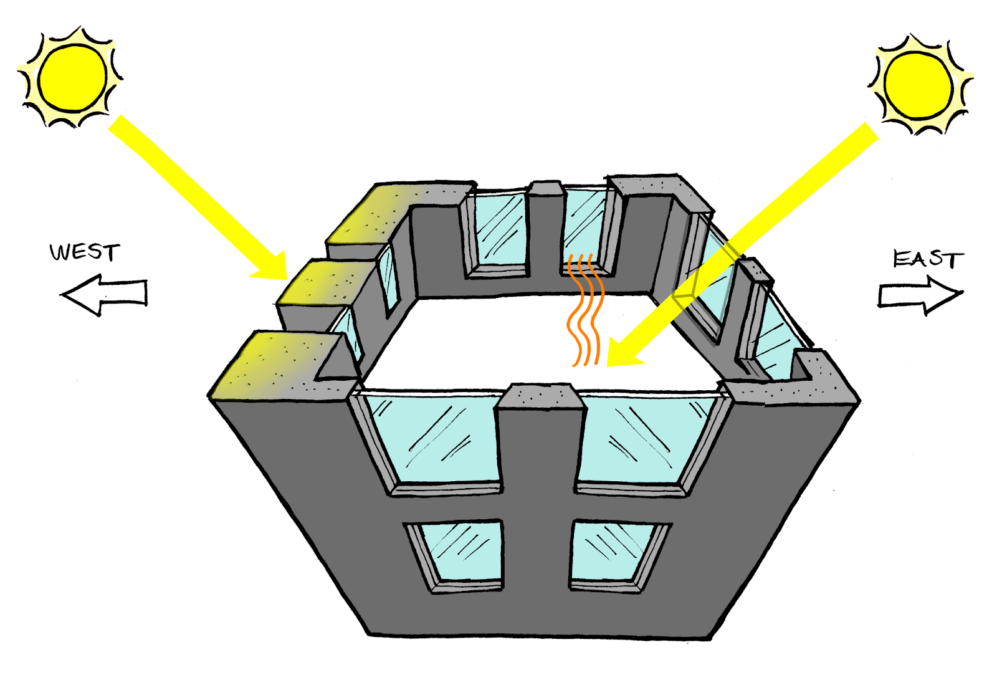

Building orientation
Building orientation to enhance visual connectivity and vista. Image source: sustainabilityworkshop.venturewell.org

One of the important factors in building orientation is visual aspects. Strategic positioning maximizes your visual connectivity and increases your comfort. These factors depend on neighborhood conditions, thermal gain, and wind directions. We decide the size and direction of mass and apertures depending on all these factors.

Large open spaces on the eastern facades while minimizing them in the western direction protect you from harmful evening rays. As for visual connectivity, we optimize the built spaces with respect to the neighborhood to highlight the aesthetic appeal and vista.

Orientation for Ventilation

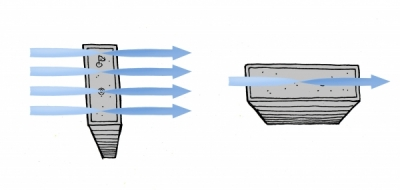

Airflow by building orientation. Image source: sustainabilityworkshop.venturewell.org

Natural and cross ventilation is vital in any structure. These increase comfortability within the interior. However, deciding the building orientation in architecture involves analyzing the prevailing wind direction and its topographical location. It would be best to plan airy interiors for hot regions and block the same for colder terrains.

Most of the time, the data mentioned about the wind direction might not match the site conditions. Existing vegetation, nearby trees, or surrounding built structures can alter the course of the wind flow. Measuring the on-site wind flow is advisable to get the maximum benefits.

Another major recommendation is to place the building orientation perpendicular to the wind flow. You limit the air circulation within interiors when you position the buildings parallel to the wind flow. However, even these design strategies alter when you create courtyards and similar spaces.

Building Orientation in Architecture

In a nutshell, building orientation depends on the natural and artificial factors to shape its true benefits. Apart from the functional needs, understanding the importance of building orientation in architecture results in an efficient design. Designers and developers use orientation to optimize the building to its site and surrounding. Thus making it an inevitable design process that shapes the design structure and massing!
